| Sample rate |
1 GSa/S (enkelkanaals) |
| Geheugendiepte |
70 Mpts (enkelkanaals) |
| Capture rate |
130.000 wfm/s |
| Verticale schaal |
1 mV/div - 10 V/div |
| Horizontale schaal |
2 ns/div - 1 ks/div |
| Decoderingsmogelijkheden |
Serial (UART, CAN, LIN, SPI, I2C) |
| Ondersteunde extra metingen |
Charging circuits, starter circuits, sensors, actuators, ignition, networks (inclusief CAN, LIN, Flexray, K line, etc.), combination tests |

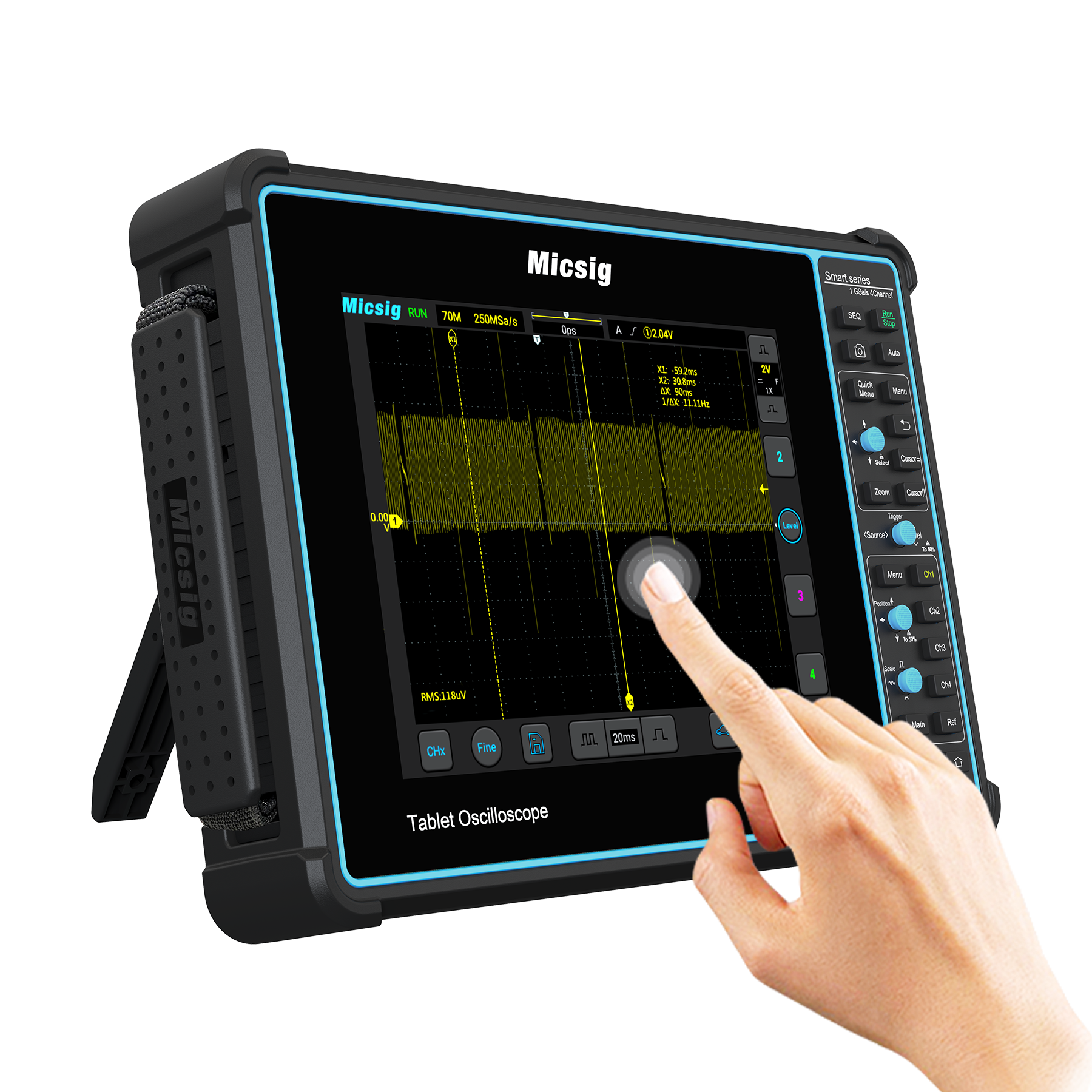

| Beeldscherm |
8" Touchscreen LCD, 800 x 600 px. |
| Interne opslag |
32 GB |

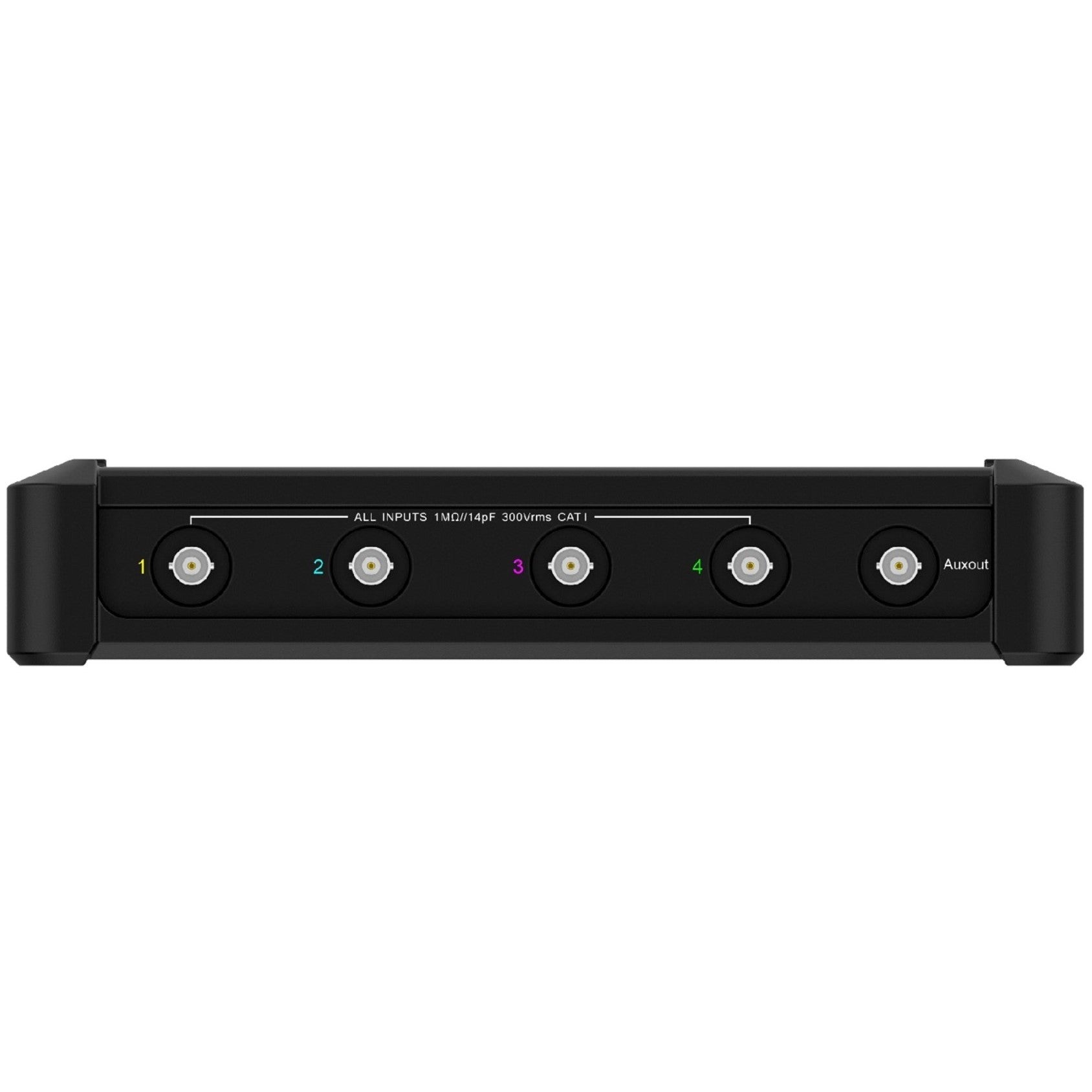

| Interfaces |
Wi-Fi, USB 3.0/2.0 Host, USB Type-C, aarding, HDMI, Trigger out |

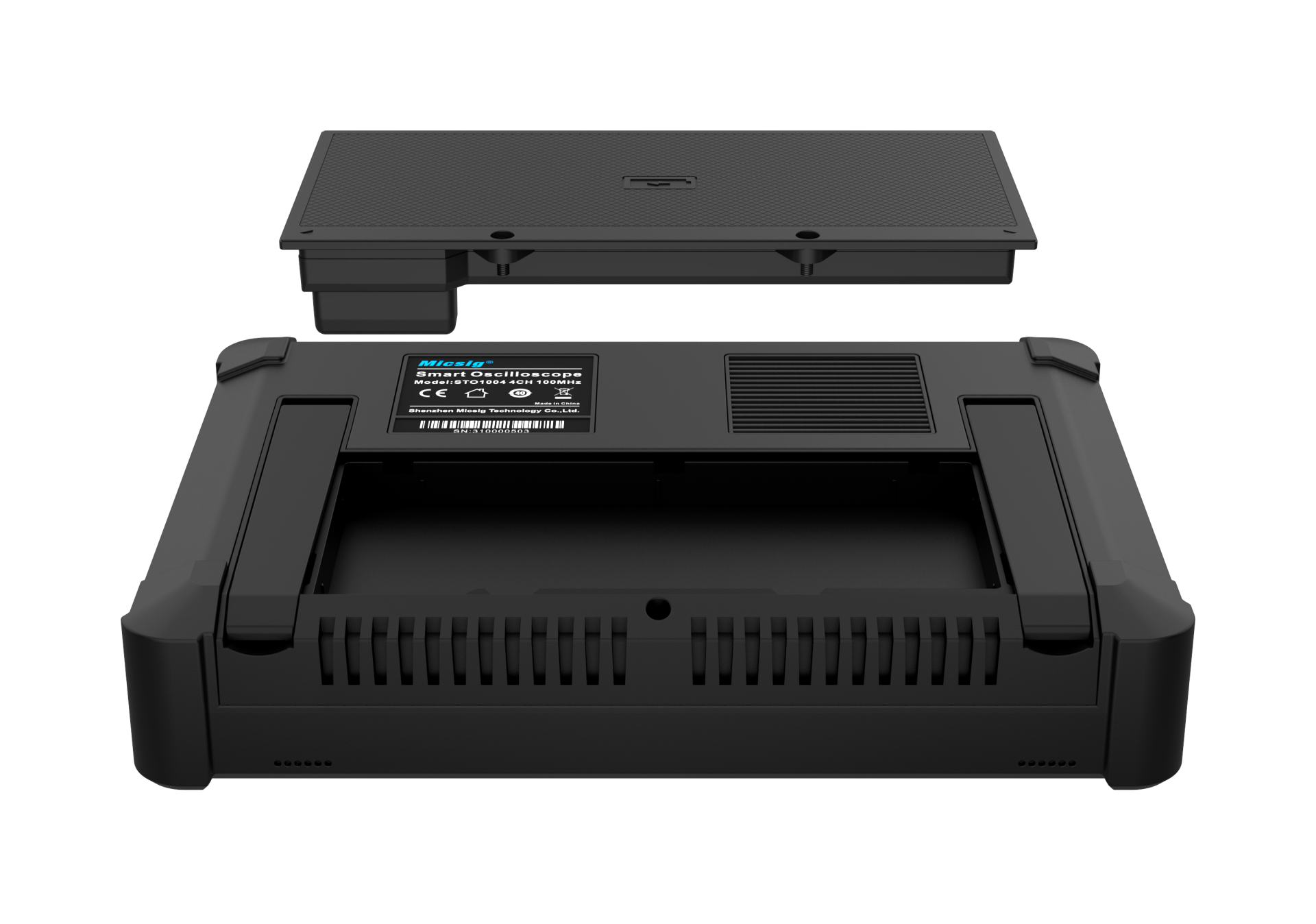

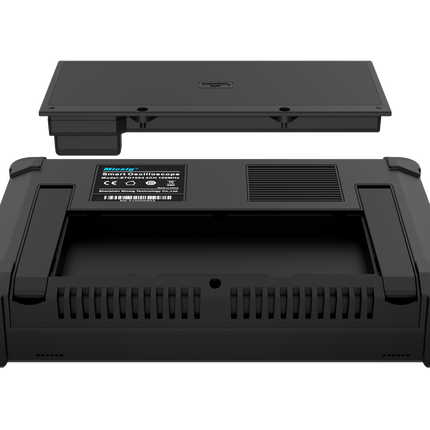

| Batterij |
7500 mAh (ca. 5 hours) |
| Afmetingen |
265 x 192 x 50 mm |
| Gewicht |
1.9 kg (met batterij) |
